Sekonic C-7000 SPECTROMASTER Spectrometer

CAT#
SKU:
401-710

$2,200.00

FIND A DEALER

Key Features

* with the latest firmware

Measures LED, HMI, Fluorescent, Tungsten, Natural Light and Flash, from 380 to 780nm

Wide measurement range of Color Temperature (1,563 to 100,000K) and illuminance (1 to 200,000lx in ambient light, 20 to 20,500lx・s in flash light)

Conforms to Class A of JIS C 1609-1: 2006, and DIN 5032 Part 7 Class C as Illuminance meter class

Text Mode with more measurement for Industrial use such as Tcp, ⊿uv, XYZ, λd, λp, Pe

Spectrum Mode / Spectrum Comparison Mode

PPFD (Photosynthetic Photon Flux Density) Measurement

Expanded Color Rendering Properties (CRI/CRI Comparison, SSI, TLCI, TLMF, TM-30-18) *

CIE1931 (CIE1964) Chromaticity Coodinates and CIE1931 (CIE1964) Comparison Mode

CIE1976 Chromaticity Coodinates and CIE1976 Comparison Mode

2°or 10° field of view is selectable

Single / Continuous measurement *

Exposure time (Shutter speed) is selectable

Up to 999 measurements can be stored in memory

User-friendly design: 270 degrees swivel head, dark calibration without a cap, large 4.3” color touch panel LCD and Customize function

C-7000 Utility offers easy setting, updating firmware of the meter, and outputting the various graphics and csv data

1nm / 5nm increment spectrum output in CSV format by Utility

SDK (Software Development Kit) for remote control is available

See More
Product Overview

The SPECTROMASTER C-7000 is a portable handheld spectrometer, designed especially for industrial use.

Utilizing Sekonic’s CMOS linear image sensor design and large touch-screen color display, the C-7000 can measure and accurately describe LED, HMI, fluorescent, as well as natural light and electronic flash.

The C-7000’s Utility software displays memorized data in several ways and outputs spectral data in 1nm/5nm (nanometer) increments in CSV format.

The C-7000 is an important measuring tool for quality control in lamp manufacturing, medical facilities, educational / office safety and health standards, agricultural lighting / design and many more industrial uses.

Specifications
International Catalog
401-710
International Catalog Info

JT50 (lx only)
JT52 (lx & fc)


Sensor
CMOS linear image sensor
Measuring System
Spectro Meter Incident light: Swivel head

Measuring Modes Ambient Light

Ambient light

Measuring Modes Flash

Cordless, Cord-in (PC)

Color Measuring Mode (Display Mode)

Text mode, Spectrum mode, Spectrum Comparison mode, CRI mode, CRI Comparison mode, TM-30-18 mode, SSI mode, TLCI/TLMF mode, CIE1931 (CIE1964) mode, CIE1931 (CIE1964) Comparison mode, CIE1976 mode, CIE1976 Comparison mode

Measuring Range (ISO 100) Ambient Incident Light

1 to 200,000 lx *
0.1 to 18,600 fc

* Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments”
* DIN 5032 Part 7 Class C

Measuring Range Flash Incident Light

20 to 20,500lx・s
1.86 to 1,900 fc・s

Spectral Wavelength Range
380nm to 780nm
Color Measuring Range Ambient Light
1,563 to 100,000K
Color Measuring Range Flash Light
2,500 to 100,000K
Color Measuring Units Color Rendering Properties
CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF
Color Measuring Units Color Parameters
Correlated Color Temperature (Tcp),Deviation (⊿uv ), Tristimulus value (XYZ / X10Y10Z10), CIE1931/1964 (xyz / x10y10z10), CIE1976 (u’v’ / u’10v’10 ),
Color Measuring Units (Industrial)

Dominant wavelength (Λd), Excitation purity (Pe), Peak wavelength (Λp), PPFD,

Shutter Speeds Range (Ambient Light)
Auto - Max.: 15 sec., Min.: 0.5 sec. Manual - 0.1s, 1sec.
Shutter Speeds Range (Flash Light)
1 to 1/500 sec. (in 1 step)
Memory
Yes (999 times)
Contrast/Comparison Function
Yes
Custom Settings
Yes (5 custom settings)
Measuring Data Output
Memorized value with graphic Spectral irradiance from 380nm to 780nm in 1 and 5 nm increments

Tripod Socket
Yes
Operating Temperature
-10 to 40 deg. C
Storage Temperature
-10 to 60 deg. C
Power source
1.5V x 2 (AA battery), USB bus-power
LCD
4.3" color dot matrix touch panel LCD
LCD Backlight
Yes
Weight (lbs.)
0.51
Weight (KG)
0.23
Product Depth Inches
7.20
Product Width Inches
2.90
Product Height Inches
1.10
Product Depth Centimeters
18.30
Product Width Centimeters
7.30
Product Height Centimeters
2.70
Product Metric Weight Grams
230.00

Sekonic C-7000 SpectroMaster Color Meter

CD-ROM

Start-up Guide

Soft Case

Strap

Safety Precaution

Software

CAUTION!: Do not connect C-800 meter with C-700/7000 Utility. C-800 meter can be downgraded to C-700.

MAC OS C-700/7000 Series Utility

IMPORTANT!:

  1. READ ME FIRST before you begin.
  2. Please see the Software Guide for installation.

  3. Turn off firewalls and anti-virus programs during the installation process.



Version 3.00.00 for MAC Download C-700_7000 Series Utility for OSX 10.13 - 10.15 (221 MB)

WINDOWS C-700/7000 Series Utility

IMPORTANT!:

  1. READ ME FIRST before you begin.
  2. Please see the Software Guide for installation.

  3. Turn off firewalls and anti-virus programs during the installation process.



Version 3.00.00 for Windows Download C-700_7000 Series Utility for Windows 7 - 10 (265 MB)

SpectroMaster C-7000 SDK (Software Development Kit)

IMPORTANT!:

  1. Please note that any questions, improvement requests or technical inquiries regarding SDK usage are not supported.
  2. If you want to get C-7000 SDK, it is required to fill in the form and send it back to a local distributor in your country. We will contact you after receiving the form. Please download the application form below.

​Download C-7000 SDK Application Form (.xlsx)


Software Guides (PDF)

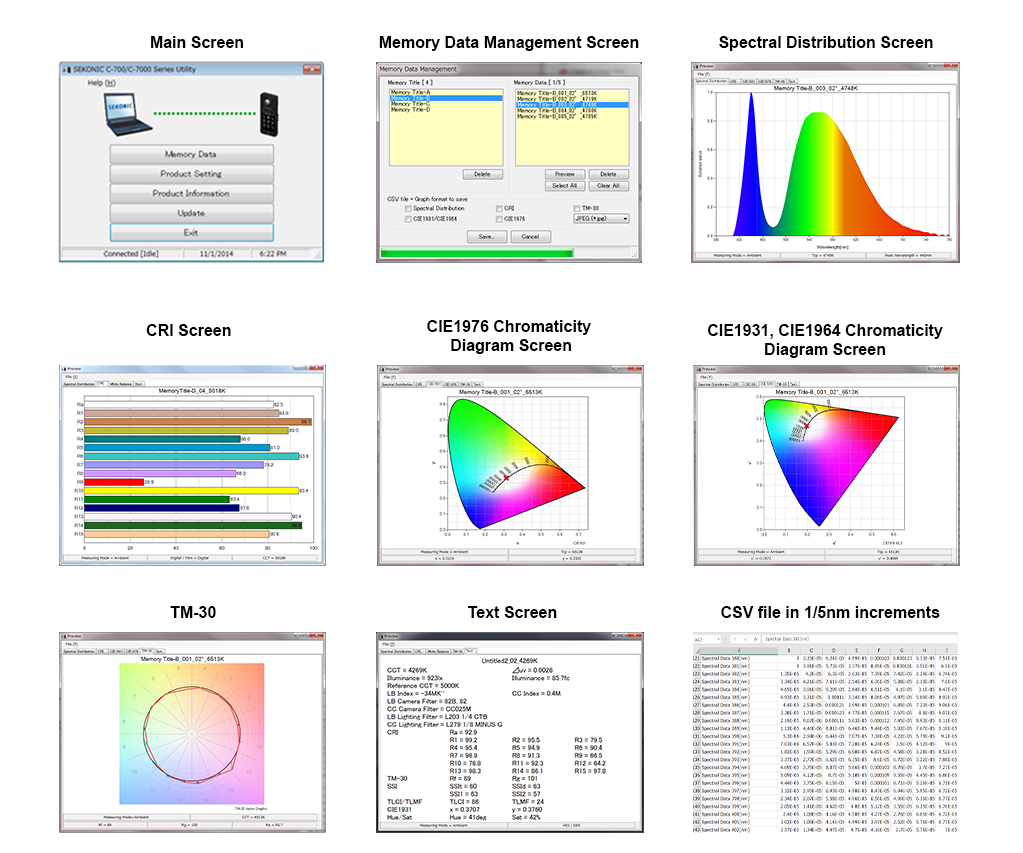

The Screens of C-7000 Utility Software

CAUTION!: NOTE: 1nm / 5nm increment spectrum output in CSV format by Utility can be done by C-7000 Only.

Firmware

IMPORTANT!:

  1. To update the firmware of your meter, install the Utility first.
  2. Please see the software guide above in the software tab.

  3. Press the "Update" button on the main screen of Utility, and follow the instruction.

See the Release Note here for firmware version.

Manuals
Quick Start Videos
